Determining Radius Corners

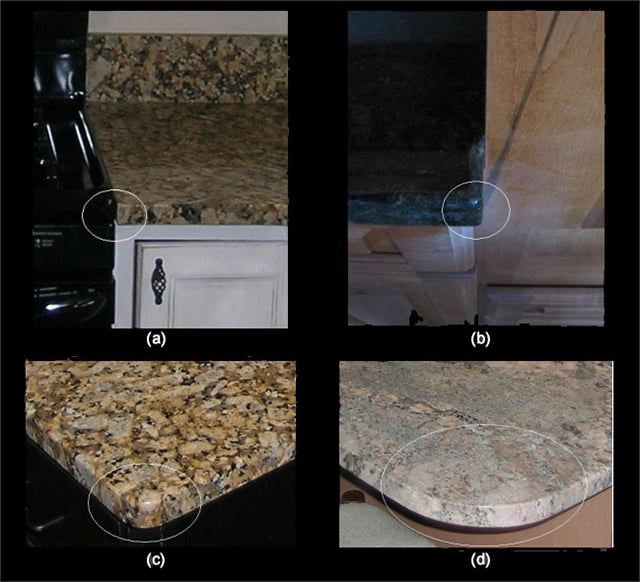

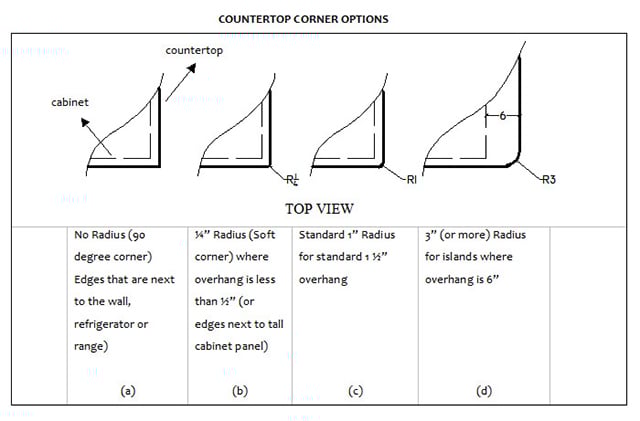

We offer several options to select from for your countertop radius corners. Radius corners refer to the degree of “roundness” the countertop corners will have. These are the corners that are exposed to traffic areas or where people walk. The first illustration below indicates 90-degree corner that is generally used for countertop edges that abut to a wall or backsplash. This is also the case for the countertop edge, which will be next to the range or refrigerator. With a standard 1-1/2″ overhang we use a maximum of 1″ radius corners. Depending on the overall design and the cabinet layout, we can make it only 1/4″ radius (which we call “soft” corner) just to take away the “sharpness” of the corner. Below you will find some options for your countertop radius corners.

Determining Radius Corners ags resources 31
ags resources 32

If you have any questions or concerns about the subject, please do not hesitate to contact us.
